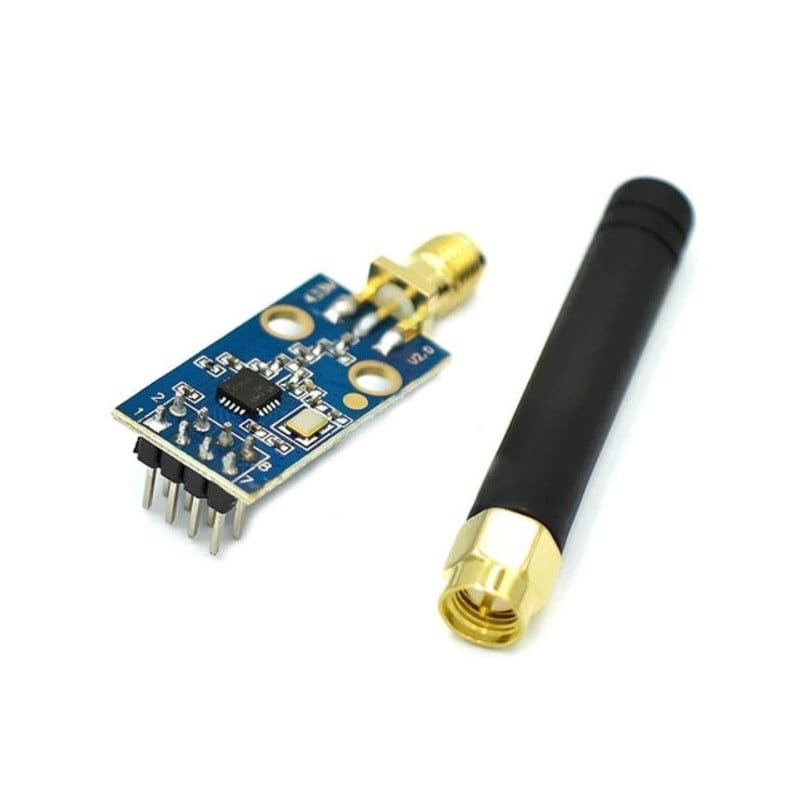

CC1101 Wireless Module for Arduino

Product Description:

The CC1101 RF Wireless module is a high-performance radio transceiver compatible with 315/433/868/915 MHz frequencies, ideal for wireless communication projects, automation systems, remote control setups, or IoT applications. It comes equipped with an SMA antenna to extend range and supports multiple modulation schemes such as 2-FSK, GFSK, and MSK. Reliable transmission is ensured through advanced features like built-in CRC, RSSI, and carrier detection.

Main Features:

• Extended frequency range: 387–464 MHz and 779–928 MHz, with a default frequency of 433 MHz.
• Supported modulations: 2-FSK, GFSK, MSK – for stable and efficient transmissions.
• High reception sensitivity: up to -110 dBm at 1200 baud, ideal for long-distance communication.
• Transmission speed: 1.2 kbps – 500 kbps, adaptable to various applications.
• Dedicated RX/TX buffers: 64 bytes each, operating independently.
• Low power consumption: Ideal for battery-powered devices, with standby mode and WOR (Wake On Radio) functionality.
• Programmable SPI interface: Allows configuration of operating frequency and output power (up to +10 dBm).

Technical Specifications:

• Chip: CC1101
• Supported frequencies: 315 / 433 / 868 / 915 MHz
• Default frequency: 433 MHz
• Power supply voltage: 1.8V – 3.6V
• Maximum instantaneous current: < 30 mA
• Transmission power: up to 10 mW (+10 dBm)
• Reception sensitivity: up to -110 dBm
• Modulation: 2-FSK, GFSK, MSK
• Communication interface: SPI
• Additional features: RSSI, carrier detection, CRC, programmable frequency

Package Contents:

• 1x CC1101 wireless transceiver module
• 1x SMA antenna
