Placa de dezvoltare ESP32-C6 Super Mini
  • Placa de dezvoltare ESP32-C6 Super Mini
  • Placa de dezvoltare ESP32-C6 Super Mini

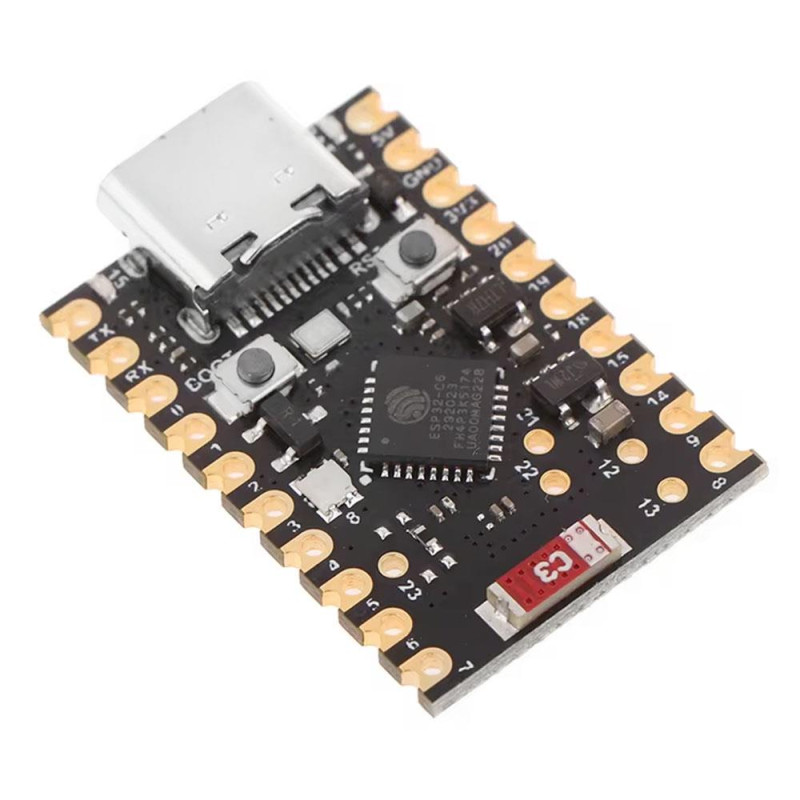

Placa de dezvoltare ESP32-C6 Super Mini

RIUVAU_ESP32-C6_super_mini
lei51.73
Tax included
Quantity
35 Items

  We deliver to lockers!

Pick up your orders anytime, hassle-free!

  Fast Delivery!

Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!

  2-Year Warranty

Reliable products, worry-free!

  Easy 14-Day Returns

Unused items? No questions asked!

Description

Product Description:

The ESP32-C6 Super Mini board is a compact and powerful solution for IoT projects that require advanced connectivity and energy efficiency. Based on the ESP32-C6 microcontroller with a 32-bit RISC-V single-core processor running at up to 160 MHz, it delivers optimal performance in a small form factor.

It features advanced wireless connectivity with WiFi 6 (802.11ax) and Bluetooth 5.3 LE with BLE Mesh support, an integrated PCB antenna, 4MB of Flash memory, 512KB high-performance SRAM, and 16KB low-power SRAM. It is equipped with a modern USB Type-C interface for easy programming and seamless integration in compact applications.

Comparison Table: ESP32 Super Mini

Feature ESP32-C3 Super Mini ESP32-S3 Super Mini ESP32-C6 Super Mini ESP32-H2 Super Mini
CPU RISC-V, single-core @160MHz Xtensa LX7, dual-core @240MHz RISC-V, single-core @160MHz RISC-V, single-core @96MHz
Flash / SRAM 4MB / 400KB 4MB / 512KB 4MB / 512KB + 16KB LP 4MB / 320KB + 4KB LP
WiFi WiFi 4 (802.11 b/g/n) WiFi 4 (802.11 b/g/n) WiFi 6 (802.11ax) No
Bluetooth 5.0 LE 5.0 LE 5.0 LE + BLE Mesh 5.3 LE
Zigbee / Thread No No Yes Yes
Integrated LED Blue (GPIO8) WS2812 RGB RGB (GPIO8) Standard (GPIO13)
USB Micro-USB Micro-USB USB Type-C USB Type-C
Battery Charging No Yes (BAT+ / BAT-) Yes (BAT+ / BAT-) Yes (BAT+ / BAT-)
Dimensions 22.52 x 18 mm ~1 extra pin row ~2 extra pin rows ~1 extra pin row
Special Features Compact, stable PCB antenna Dual-core, RGB LED, extended GPIO WiFi 6, BLE Mesh, USB-C Thread, Zigbee, BLE, USB-C

Technical Specifications:

  • Microcontroller: ESP32-C6 (single-core RISC-V, up to 160 MHz)
  • Power Supply (USB): 5V
  • Digital I/O Pins: 11
  • Analog Pins: 6 (A0 – A5)
  • Flash Memory: 4MB SPI Flash
  • SRAM: 512KB + 16KB LP SRAM
  • WiFi: WiFi 6 (802.11 ax b/g/n, 2.4GHz)
  • Bluetooth: 5.3 LE + BLE Mesh
  • USB: USB Type-C
  • Dimensions: 25.2mm x 17.2mm

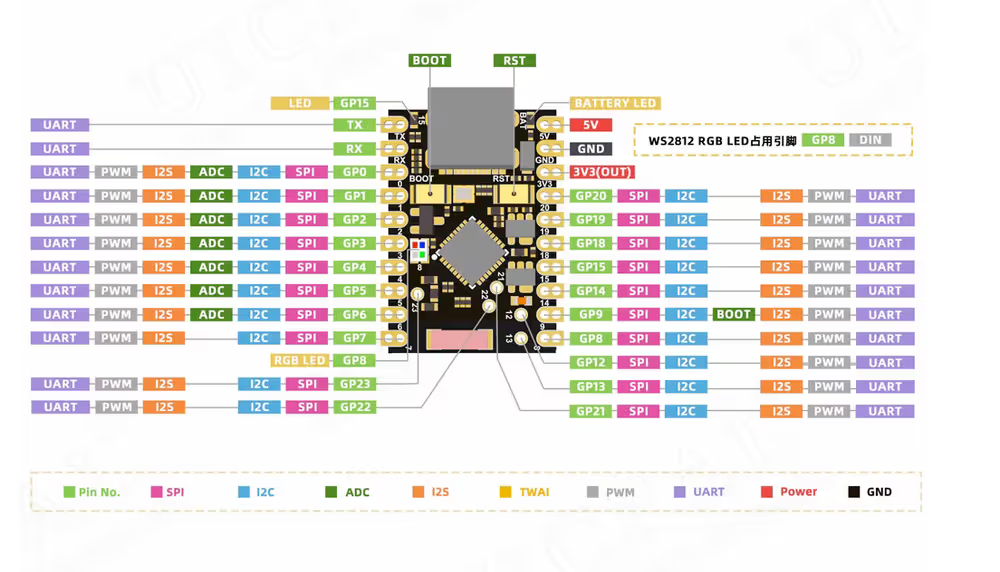

Pinout:


Recommended Applications:

  • Compact IoT projects and portable devices
  • Wireless sensors and smart home automation
  • BLE Mesh devices and WiFi 6 solutions

Package Contents:

  • 1x ESP32-C6 Super Mini development board
  • 2x 10-pin male headers (2.54mm pitch)
Product Details
RIUVAU_ESP32-C6_super_mini
35 Items

Specific References

EAN13
6427854038241
