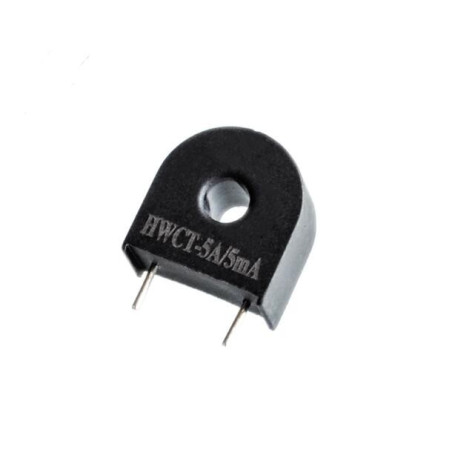

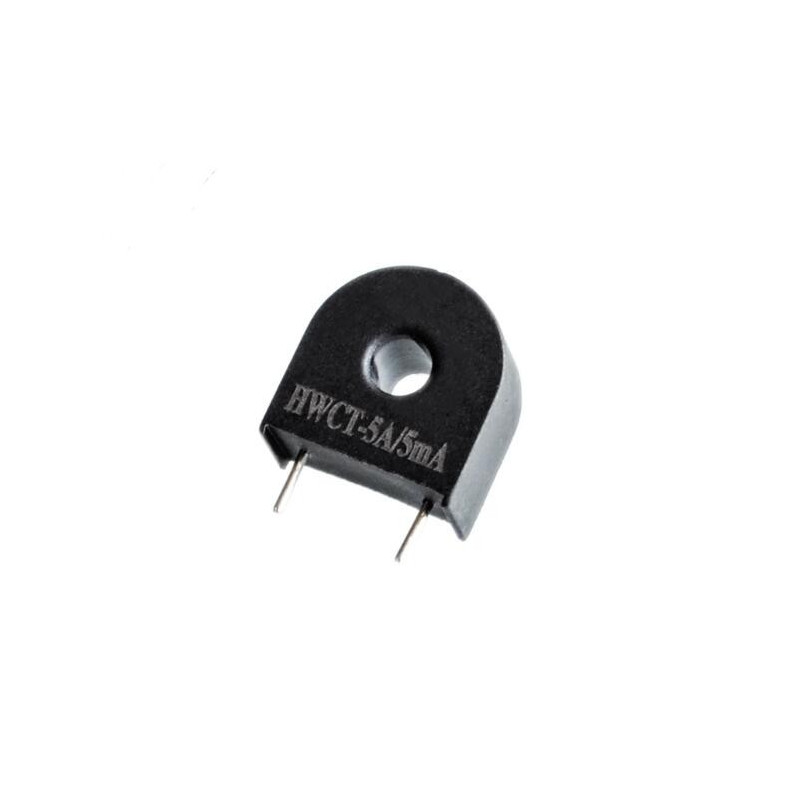

5A to 5mA Precission AC Current Transformer

Product Description:

A current transformer (CT) is used to measure alternating currents. When a current in a circuit is too high for direct measurement instruments, a transformer reduces the current precisely and proportionally to the current in the circuit, making it convenient to measure.

Technical Specifications:

Model: ZMCT103C (Class A)
Nominal Input Current: 5A
Nominal Output Current: 5mA
Transformation Ratio: 1000:01:00
Angle Error: ≤15′ (input 5A, resistor 50Ω)
Linear Range: 0~10A (resistor 50Ω)
Linearity: ≤0.2% 5% dot~120% dot
Permissible Error: -0.2% ≤ f ≤ +0.2% (input 5A, resistor 50Ω)
Isolation Voltage: 4500V
High Accuracy
Encapsulation: Resin
PCB Mounting: THT terminal length >3mm
Operating Temperature: -40ºC~+85ºC

Dimensions:

Package Contents:

1x Precision AC Current Transformer 5A-50mA
