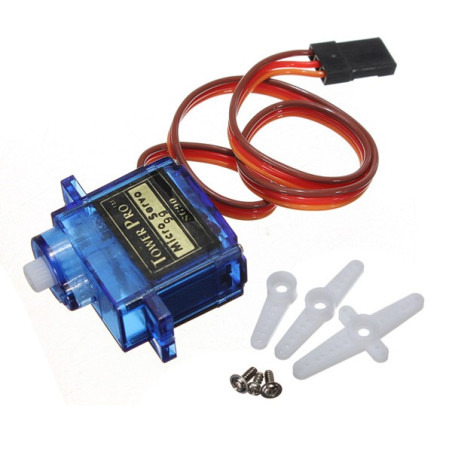

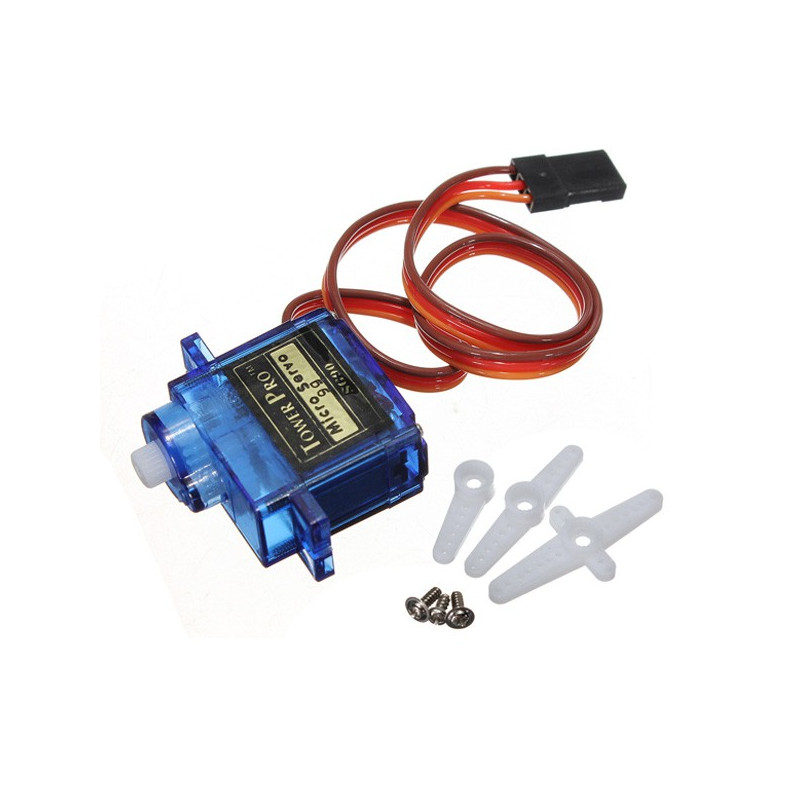

SG90 Servomotor

Product Description:

This mini servo motor is specially designed for low-power applications, such as robots or remote-controlled toys. For example, you can use it in a small car to move the front wheels for turning.

Technical Specifications:

Operating voltage: 4.8V - 6V;
Current consumption: 220 ± 50 mA
Rotation angle: 120 degrees
Low power consumption;
Stall torque at 4.8V: 1.8 kgf*cm;
PWM frequency: 50Hz;
Operating temperature: -30° C to +60° C.
Dimensions: 21.5 x 11.8 x 22.7 mm

Package Contents:

• 1x SG90 Servo Motor
• 3x Servo horns
• 2x Self-tapping screws 2 x 8mm (for motor mounting)
• 1x Self-tapping screw 1.7 x 3.5mm (for horn mounting)
