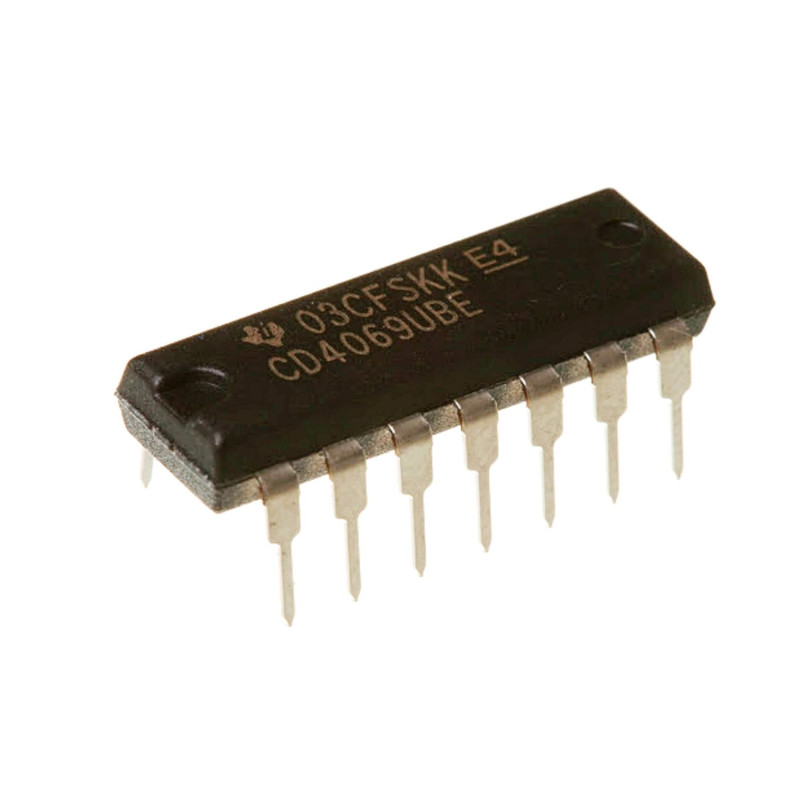

CD4069 Hex Invertor

Overview

The UTC CD4069 consists of six inverter circuits and is manufactured using complementary MOS (CMOS) to achieve wide power supply operating range, low power consumption, high noise immunity, and symmetric controlled rise and fall times. All inputs are protected from damage due to static discharge by diode clamps to VDD and VSS.

Specifications

• Wide supply voltage range: 3.0V ~ 15V.
• High noise immunity: 0.45 VDD typ.
• Operating Temperature Range: -40 ~ 85 °C
