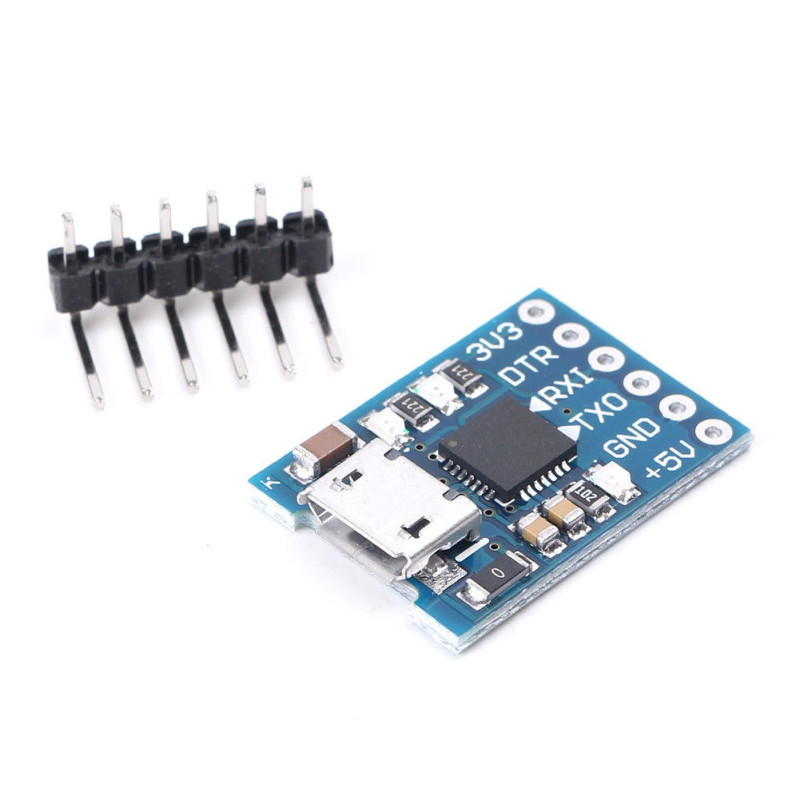

Micro USB CP2102 Breakout Module

Overview

The CP2102 USB/TTL represents a Breakout Board with Additional Signals which are not present in other similar Converters. This is a great little tool for embedded systems that require a serial connection to a computer. The board can simply attach to a USB bus via a standard type B female connector and will appear as a standard COM port.

Thes CP2102 doesn’t require any external oscillator, it has an on-board voltage regulator, and it even uses a re-programmable internal EEPROM for the device description. The full hardware UART has flow control for baud rates from 300bps to 921600bps. This breakout also allows you to connect the TX/RX pins of your favorite microcontroller or serial application to the RX/TX pins of the breakout, creating a simple serial cable replacement.

Specifications

• 3.3V and 5V power supply interface
• Implements full v2.0 USB protocol
• On board status indicator lights for RX and TX
• Internal 1024 Bytes EEPROM for device ID and Product Description strings
• Internal 640 Byte TX buffer
• Internal 576 Byte RX buffer
• Supports Windows 98SE, 2000, XP, Vista, Window7, Mac OS 9, Mac OS X & Linux 2.40
• Temperature Range: -40 to +85
• Standard USB type A male and TTL 6pin connector. 6pins for 3.3V, RST, TXD, RXD, GND & +5V
