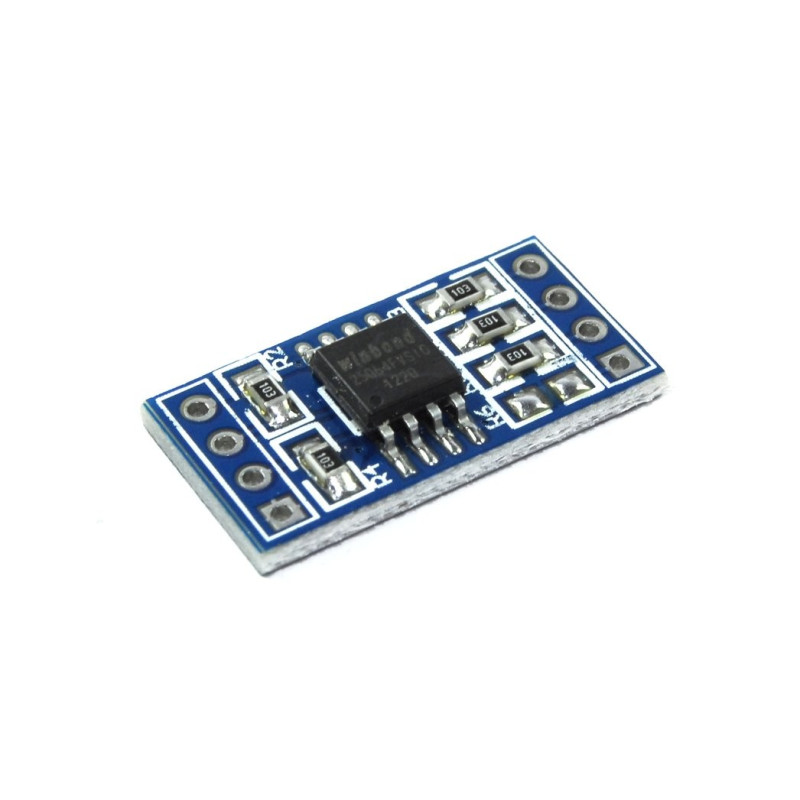

W25Q64B Large Capacity SPI Flash Memory Module

Name: W25Q64B Large Capacity SPI Flash Memory Module
Brand: ArduShop
SKU: PCTGKA_W25Q64B
Price: 18.23 RON
Availability: OutOfStock

Reference PCTGKA_W25Q64B

lei18.23

Tax included

Quantity

Out-of-Stock

We deliver to lockers!

Pick up your orders anytime, hassle-free!

Fast Delivery!

Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!

2-Year Warranty

Reliable products, worry-free!

Easy 14-Day Returns

Unused items? No questions asked!

Description
Product Details

Description

Overview

This module is an ideal solution for temporary saving of data. This integrated circuit (W25Q64) has a very good quality with large memory capacity, and very low consumption.

The module can have many uses. For example, you can use to build devices that carry them with you and store data with GPS (geographical location store) or acceleration in certain circumstances in the car.

Specifications

Supply Voltage: 2.7 V to 3.6 V
Current Consumption: 4 mA active <1uA in power down mode
64 MB memory (8MB) organized in blocks of 256 bit
SPI communication (Standard, Dual, Quad) speed of 80 MHz.
Dimensions: 21.85 x 11.6 mm.

Pin	Description
DI/IOO	Data output (data input output 0)
HOLD/IO3	Hold input (data input output 2)
DO/IO1	Data output (data input output 1)
WP/IO2	Write protect (data input output 2)
VCC	3.3V
CLK	Serial clock input
CS	Chip select input
GND	0v
