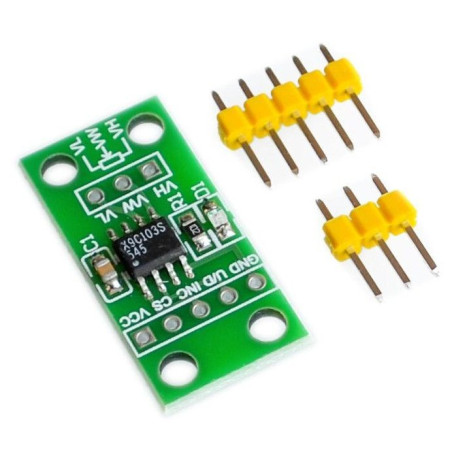

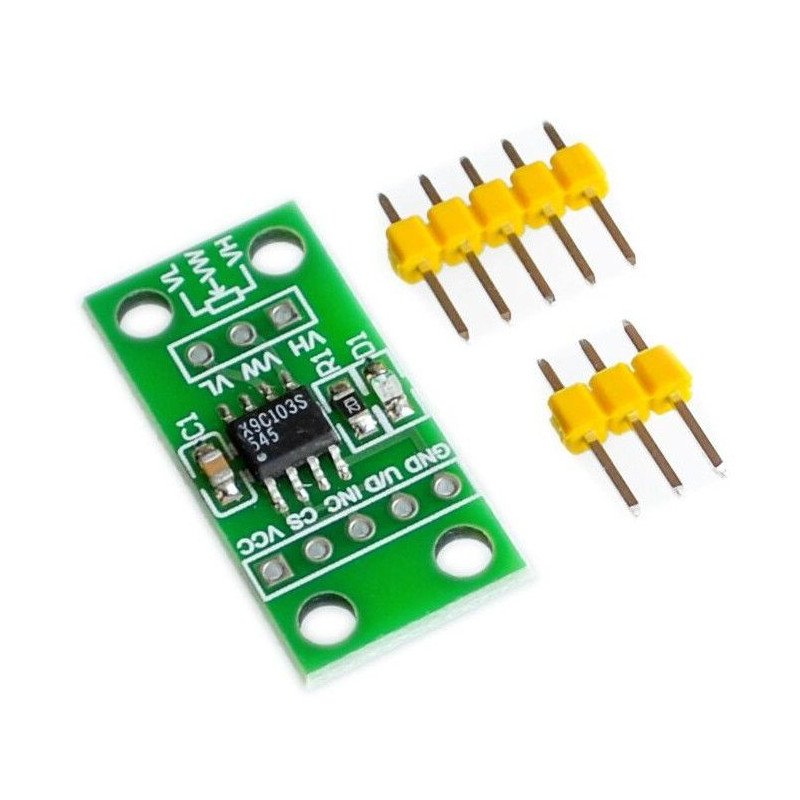

X9C103S Digital Potentiometer Module
We deliver to lockers!
Pick up your orders anytime, hassle-free!
Fast Delivery!
Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!
2-Year Warranty
Reliable products, worry-free!
Easy 14-Day Returns
Unused items? No questions asked!
Description
Overview
The X9C103 is a digitally controlled (XDCP) potentiometer. The device consists of a resistor array, wiper switches, a control section, and nonvolatile memory. The wiper position is controlled by a three-wire interface.
The device can be used as a three-terminal potentiometer or as a two-terminal variable resistor in a wide variety of applications ranging from control to signal processing to parameter adjustment.
Specifications
- Supply voltage: 3V-5V
- Chip: X9C103S
- PCB board size: 2.7 * 1.3CM
- 10K span potentiometer.
- Potentiometer center tap between 0-10k slide in total 100 (potentiometer wiper typical impedance 40 ohms)
- VL and VH digital potentiometer sliding rheostat port corresponding to the low-end and high-end, allowing the input voltage range -5V to + 5V.
Product Details
DQPNYK_X9C103S
11 Items
Specific References
- EAN13
- 6427854007070
