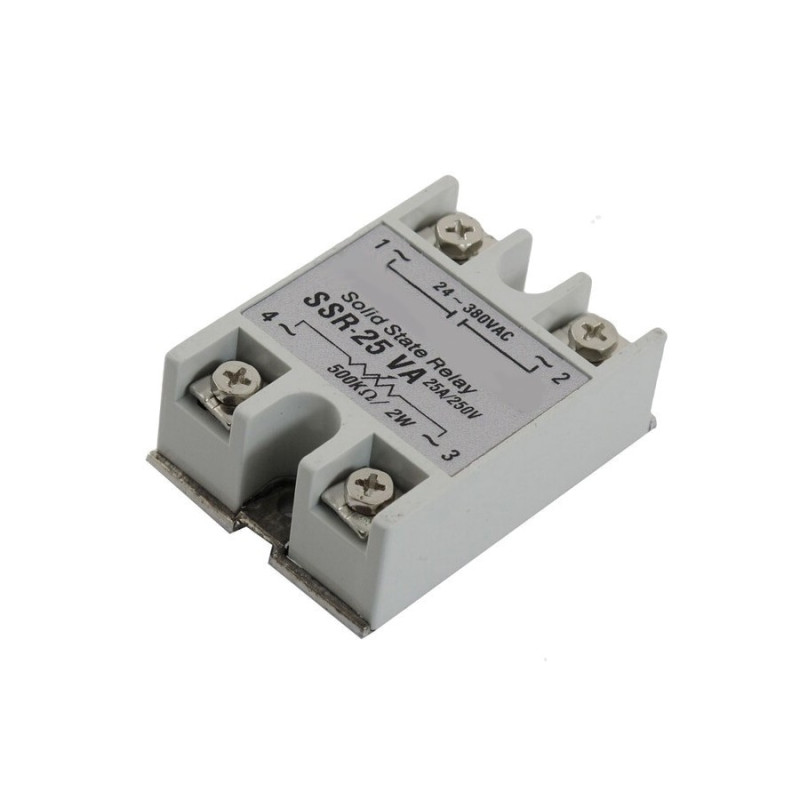

Solid State Relay 25A VA
We deliver to lockers!
Pick up your orders anytime, hassle-free!
Fast Delivery!
Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!
2-Year Warranty
Reliable products, worry-free!
Easy 14-Day Returns
Unused items? No questions asked!
Description
Overview
This solid state relay is used in applications for: electric power, chemical, plastic injection, packaging, incubators, ovens, and other industrial equipment automatic switch.
Specifications
| Product Name | Solid State Relay |
| Type | SSR-25VA |
| Material | Metal, Plastic, Electric Parts |
| Control Method | Phase control |
| Rated Voltage | 250VAC |
| Rated Current | 25 A |
| Load Voltage | 24-380VAC |
| Voltage Drop | 1.6V / 25°C |
| Variable Resistance | 500kΩ to 220V |
| Leakage Current | 5 mA |
| Rated Resistance | 500 Kohm |
| Rated Power | 2W |
| Max. Back Voltage | 600 VAC |
| Max. Durated Current | 275A |
| Mounting Hole Size | Small Dia: 4mm, Big: 7 x 4.3mm |
| Relay Size | 64 x 45 x 23 mm |
| Main Color | Silver Tone, Gray |
| Weight | 104g |
| Operating Temperature | -20°C ~ +80°C |
| Dielectric Strength | Over 2.5KVAC / 1min |
| Isolation Strength | Over 50MΩ / 500VDC |
Guiding of Model
 |
|
| 1. | Product |
| SSR：Single Phase S.S.R TSR：Three Phase S.S.R |
|
| 2. | Output Current |
| 10=10A 25=25A 40=40A 50=50A 75=75A |
|
| 3. | input Operating Voltage |
| L：4 ~20 mA D：4 ~32 VDC A：80 ~ 250 VAC V：Variable Resister |
|
| 4. | Output Operating Voltage |
| A：AC Voltage D：DC Voltage |
|
| 5. | Output Voltage Range |
| H：90 ~ 480 VAC (High Voltage) non ：Standard Type |
|
