Product Description

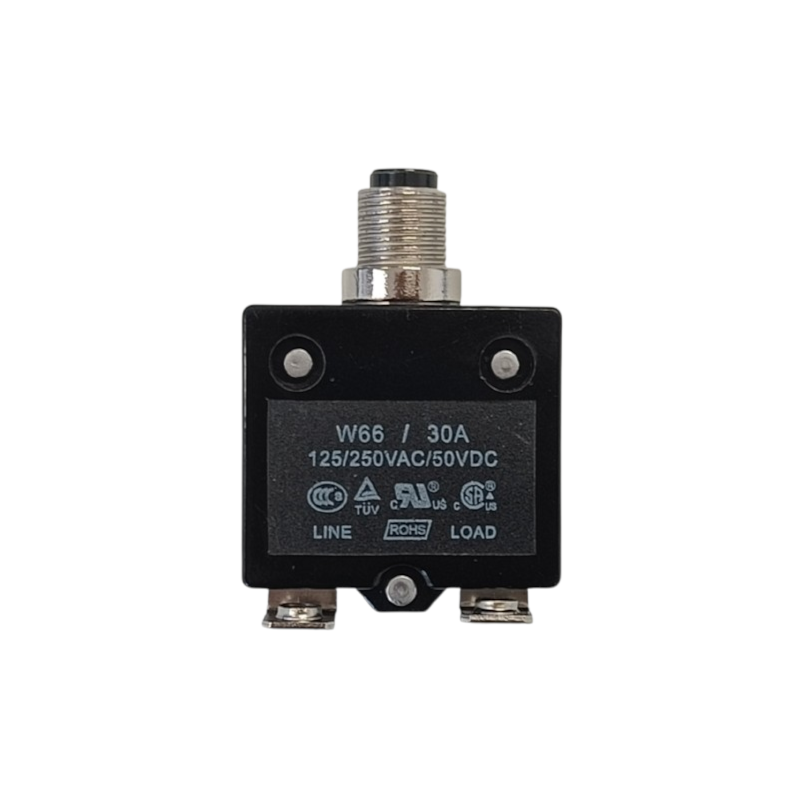

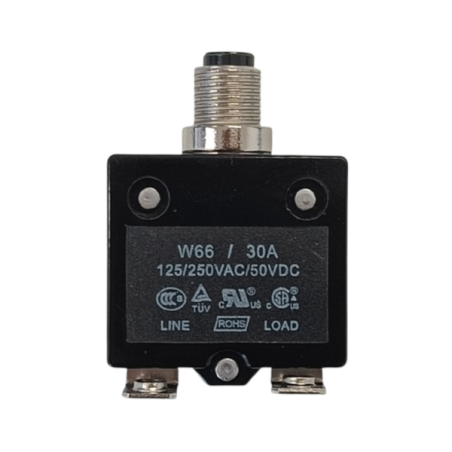

W66 – 30A is a resettable thermal circuit breaker (manual reset) designed to protect circuits against overload and short circuit. Its robust construction, flame-retardant housing, and large screw terminals make it suitable for light industrial and hobby applications: distribution panels for DIY projects, CNC/robotics, AC power supplies, chargers, and DC circuits up to 50 V.

It mounts easily on a panel through the threaded metal bushing; after tripping, the circuit is restored by pressing the button. The LINE and LOAD markings help with correct wiring, and the certifications visible on the label confirm safe use.

Technical Details

• Model: W66
• Type: resettable thermal circuit breaker (push-to-reset)
• Rated current: 30 A
• Rated voltages: 125/250 VAC and 50 VDC
• Connections: screw terminals, marked LINE (input) and LOAD (output)
• Mounting: panel mount, via threaded metal bushing with lock nut
• Reset: manual, by pressing the front button
• Indicator: button pops out when tripped (state “OFF”)
• Certifications: TÜV, UL/cUL, CE, RoHS markings (as per label)
• Use: overload/excess current protection for AC/DC circuits in low-voltage electronic and electrical projects

Package Contents

• 1 × resettable thermal circuit breaker W66 – 30 A, 125/250 VAC, 50 VDC
• 2 × terminal fixing screws
