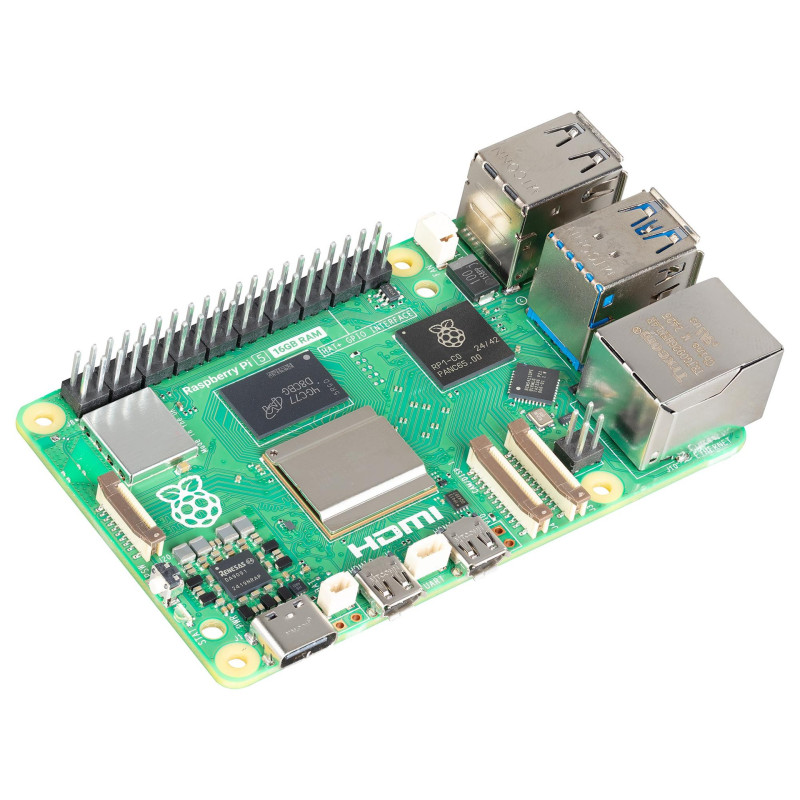

Raspberry Pi5 - 16GB

Description:

The new development board, Raspberry Pi 5, features a new quad-core 2.4 GHz processor and 16 GB LPDDR4X‑4267 RAM, which results in significantly faster performance. In terms of connectivity, it includes the new Bluetooth 5.0 standard, wireless LAN b/g/n/ac, and a Gigabit Ethernet port. Additionally, the board comes with 2 microHDMI ports (dual displays), allowing you to enjoy an extended workspace, also thanks to its 4K display support.

WARNING!

A power supply of at least 5 V / 5 A is required. If a lower amperage power supply is used, such as those typically used for charging phones, the system may randomly reset or become damaged. We will not replace boards that were damaged due to using a power supply that is not specifically designed for Raspberry Pi 5.

Specifications:

Processor:

• Broadcom BCM2712;
• Processor architecture: Arm Cortex‑A76, 64‑bit;
• Processor frequency: 2.4 GHz;
• Number of physical cores: 4;

GPU:

• VideoCore VII @ 800 MHz
• OpenGL ES 3.1, Vulkan 1.2

RAM: 16 GB LPDDR4X‑4267 SDRAM;

Connectivity:

• WiFi: 2.4 GHz and 5 GHz IEEE 802.11 b/g/n/ac;
• Bluetooth: 5.0 BLE;
• Ethernet: Gigabit;
• 2 × USB 3.0 @ 5 Gbps;
• 2 × USB 2.0;
• 40‑pin GPIO header (backward compatible);

Video & Audio:

• 2 × micro HDMI connectors with 4K support;
• 1 × MIPI DSI connector (Display Serial Interface);
• 1 × MIPI CSI connector (Camera Serial Interface);
• Stereo audio and composite video output;

Multimedia:

• H.265 decode (4K@60);
• H.264 decode (1080p60);
• H.264 encode (1080p30);
• OpenGL ES 1.1, 2.0, 3.0 + Vulkan graphics;
• MicroSD card slot for OS boot and data storage;

Power supply: USB Type‑C, 5 V / 5 A;

Operating temperature: 0 – 50 degrees Celsius;

Package Contents:

• 1x Raspberry Pi 5 Model B 16 GB
