D1-MICROSD
  • D1-MICROSD
  • D1-MICROSD

D1-MICROSD

FDYEQR_D1_MICROSD
lei5.06
lei3.54 Save 30%
Tax included
Quantity
Last items in stock
1 Item

  We deliver to lockers!

Pick up your orders anytime, hassle-free!

  Fast Delivery!

Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!

  2-Year Warranty

Reliable products, worry-free!

  Easy 14-Day Returns

Unused items? No questions asked!

Description

Description

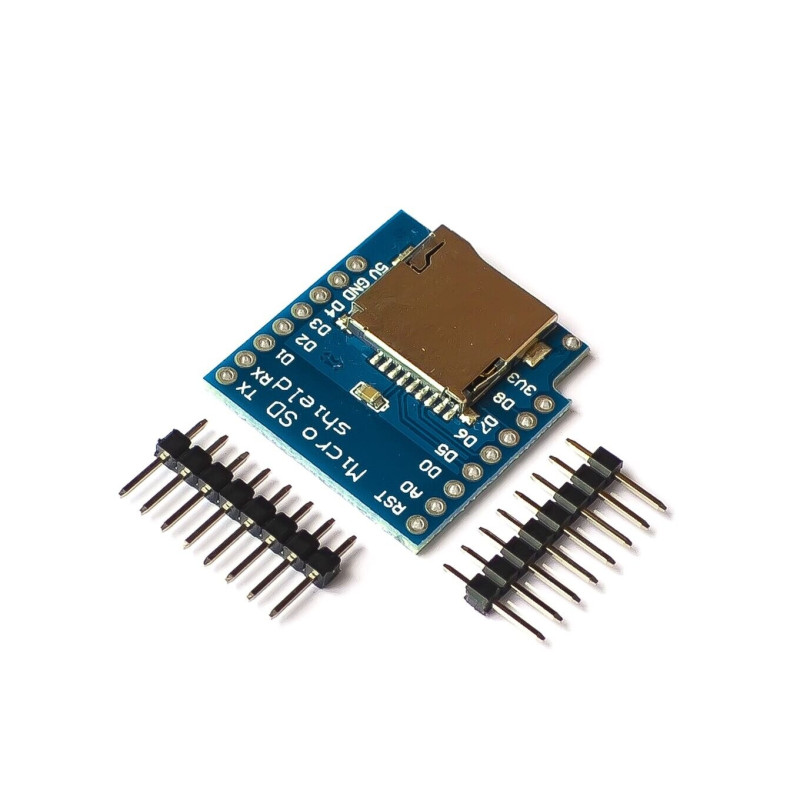

MicroSD shield for Wemos/LOLIN D1 mini boards. It enables reading/writing files on a microSD card for IoT or data-logging projects and stacks directly on the D1 mini using the included pin headers.

Features

  • Interface: SPI (SD mode) – wired to the D1 mini SPI pins.
  • Card support: microSD / microSDHC, FAT16/FAT32 file systems.
  • Supply: 3.3 V from the D1 mini.
  • PCB size: 26 × 28 mm (approx.).

Pin mapping (D1 mini)

  • CLK → D5
  • MISO → D6
  • MOSI → D7
  • CS → D8

Package contents

  • 1× D1 MicroSD module
  • 2× 8-pin male headers
Product Details
FDYEQR_D1_MICROSD
1 Item

Specific References

EAN13
6427854008978
