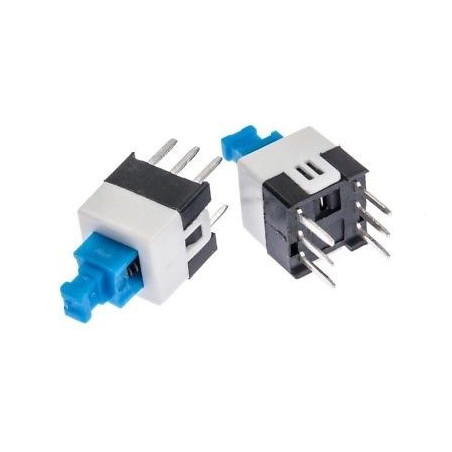

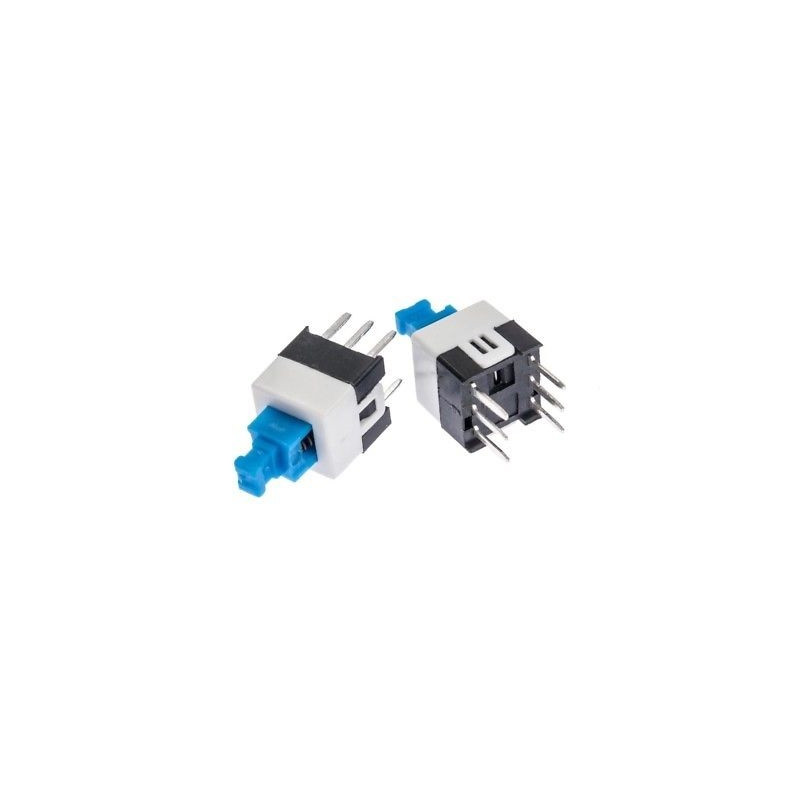

Button Self-locking Switch 7x7mm Pitch 2mm

Product Description

DPDT (Double Pole Double Throw) latching push button, suitable for switching between two stable states with each press. The compact 7x7 mm size makes it ideal for control panels, prototypes, and electronic projects. Compatible with THT mounting and 2 mm pin pitch.

Technical Specifications

• Type: DPDT (Double Pole Double Throw)
• Function: latching
• Dimensions: 7 x 7 mm
• Pin pitch: 2 mm
• Mounting: through-hole (THT)
• Number of pins: 6

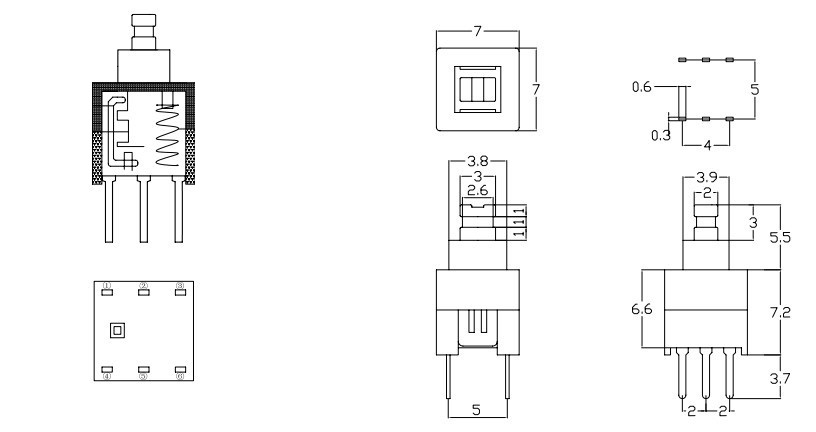

Approx. Dimensions:

Circuit Diagram:

Package Content

• 1x 7x7 mm latching push button
