Product description

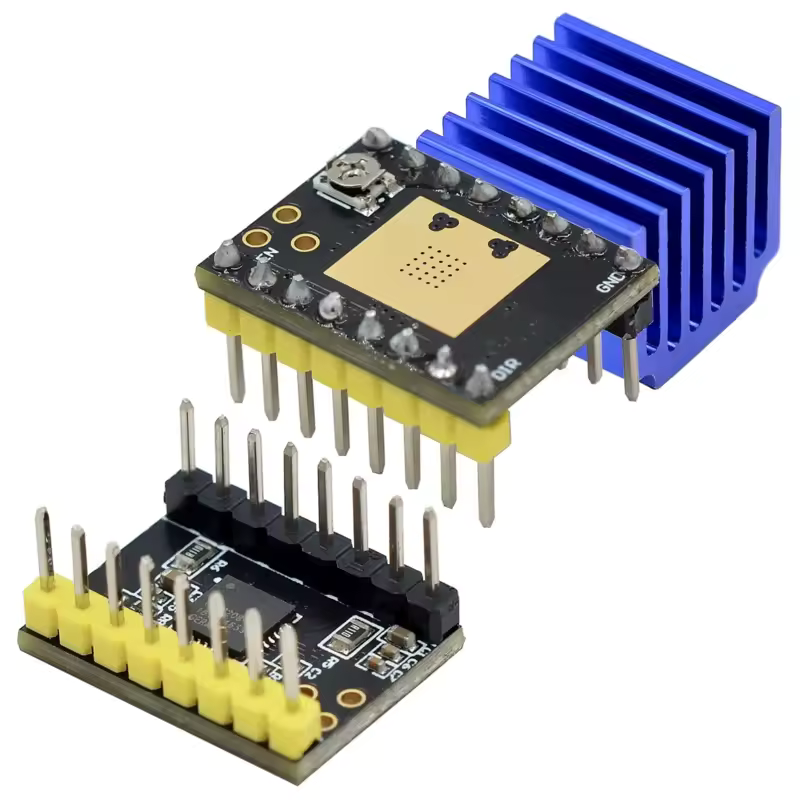

The TMC2208 is a compact and quiet stepper motor driver, ideal for 3D printers, light CNC machines, and microcontroller projects. Its flexible interface allows classic STEP/DIR control or UART configuration, while the internal 256 microstep interpolation ensures very smooth motion and reduced noise. The module includes a current adjustment trimmer (Vref) to match your motor and comes with an aluminum heatsink for efficient heat dissipation at higher currents. It is easily powered in the 5–36 V range and accepts 3.3 V or 5 V logic, making it compatible with Arduino and other development boards.

Technical details

• Model: TMC2208 stepper driver (module)
• Maximum output current: 1.4 A
• Recommended operating current: up to 1.2 A (with proper cooling)
• Microstepping: up to 256 microsteps (interpolation)
• Operating modes: STEP/DIR or UART (configurable)
• Motor supply voltage (VM): 5–36 V
• Logic voltage (VIO): 3.3 V / 5 V
• Current adjustment: on-board Vref trimmer
• Typical IC protections: overtemperature, undervoltage (UVLO)
• Aluminum heatsink for passive cooling
• Pinout format compatible with most “stepstick” driver shields

Schematic and sample code

Example wiring (Arduino UNO – STEP/DIR mode)

• TMC2208 STEP → Arduino D2
• TMC2208 DIR → Arduino D3
• TMC2208 EN (Enable) → Arduino D4 (LOW = active)
• TMC2208 GND → Arduino GND
• TMC2208 VIO → 5 V (or 3.3 V)
• TMC2208 VM → 12 V (motor example; 5–36 V allowed)
• Motor coils → driver outputs A1/A2 and B1/B2

Note: set the proper motor current via Vref before use and ensure cooling with the included heatsink.

Arduino code – test rotation

// TMC2208 – simple STEP/DIR test
const int PIN_STEP = 2;
const int PIN_DIR  = 3;
const int PIN_EN   = 4;

void setup() {
  pinMode(PIN_STEP, OUTPUT);
  pinMode(PIN_DIR,  OUTPUT);
  pinMode(PIN_EN,   OUTPUT);

  digitalWrite(PIN_EN, LOW);   // enable driver
  digitalWrite(PIN_DIR, HIGH); // initial direction
}

void loop() {
  // 200 steps/rev * 16 microsteps = 3200 pulses for one revolution
  for (int i = 0; i < 3200; i++) {
    digitalWrite(PIN_STEP, HIGH);
    delayMicroseconds(500);
    digitalWrite(PIN_STEP, LOW);
    delayMicroseconds(500);
  }

  delay(500);
  digitalWrite(PIN_DIR, !digitalRead(PIN_DIR)); // change direction
  delay(500);
}

Package contents

• 1× TMC2208 stepper driver module
• 1× self-adhesive aluminum heatsink
• 1× header pin set (pre-soldered or for soldering, depending on batch)
