Description

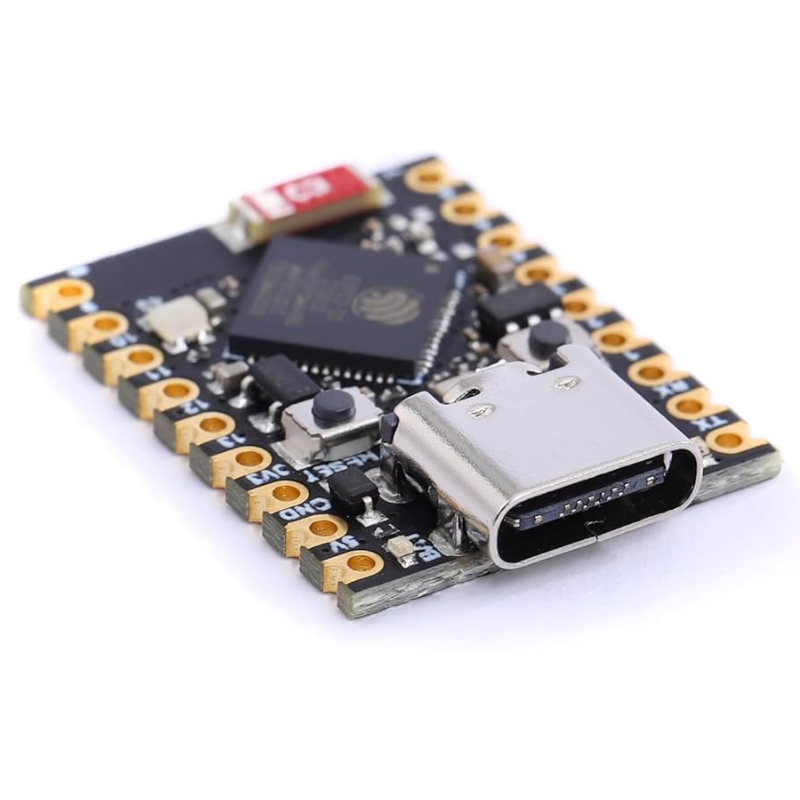

Product Description:

The ESP32-S3 Super Mini board is ideal for compact IoT projects that require WiFi and Bluetooth connectivity along with advanced processing. Based on the ESP32-S3 microcontroller with a dual-core Xtensa LX7 processor running at up to 240 MHz, it delivers excellent performance in an ultra-compact form factor.

It includes an integrated PCB antenna, 4MB Flash memory, and 512KB SRAM. Its low power consumption makes it suitable for battery-powered applications. The board also features a WS2812 RGB LED for programmable visual feedback and supports standard communication protocols like SPI, UART, and I2C.

Comparison Table: ESP32 Super Mini

Feature ESP32-C3 Super Mini ESP32-S3 Super Mini ESP32-C6 Super Mini ESP32-H2 Super Mini
CPU RISC-V, single-core @160MHz Xtensa LX7, dual-core @240MHz RISC-V, single-core @160MHz RISC-V, single-core @96MHz
Flash / SRAM 4MB / 400KB 4MB / 512KB 4MB / 512KB + 16KB LP 4MB / 320KB + 4KB LP
WiFi WiFi 4 (802.11 b/g/n) WiFi 4 (802.11 b/g/n) WiFi 6 (802.11ax) No
Bluetooth 5.0 LE 5.0 LE 5.0 LE + BLE Mesh 5.3 LE
Zigbee / Thread No No Yes Yes
Integrated LED Blue (GPIO8) WS2812 RGB RGB (GPIO8) Standard (GPIO13)
USB Micro-USB Micro-USB USB Type-C USB Type-C
Battery Charging No Yes (BAT+ / BAT-) Yes (BAT+ / BAT-) Yes (BAT+ / BAT-)
Dimensions 22.52 x 18 mm ~1 extra pin row ~2 extra pin rows ~1 extra pin row
Special Features Compact, stable PCB antenna Dual-core, RGB LED, extended GPIO WiFi 6, BLE Mesh, USB-C Thread, Zigbee, BLE, USB-C

Technical Specifications:

  • Microcontroller: ESP32-S3 (dual-core Xtensa LX7, up to 240 MHz)
  • Power Supply (USB): 5V
  • Digital I/O Pins: 11
  • Analog Pins: 6 (A0 – A5)
  • Flash Memory: 4MB SPI Flash
  • SRAM: 512KB
  • WiFi: 802.11 b/g/n (2.4GHz)
  • Bluetooth: 5.0 + BLE
  • Integrated LED: WS2812 RGB (programmable)
  • Dimensions: 22.52mm x 18mm

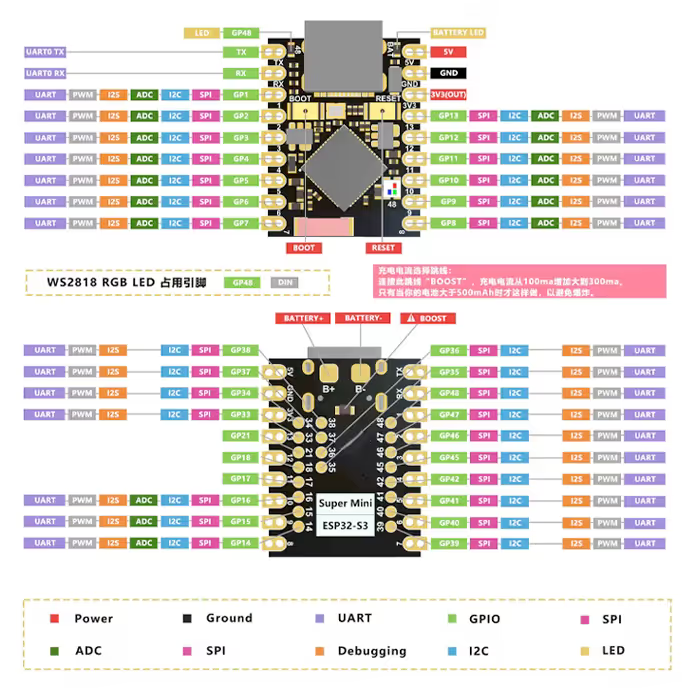

Pinout:


Pin Usage Recommendations:

  • Safe GPIO Pins: IO1, IO2, IO4, IO5, IO6, IO7, IO8, IO15, IO16, IO17, IO18, IO21
  • Pins to Avoid: IO9 – IO14, IO33 – IO48 (associated with Flash memory, USB or JTAG)

Recommended Applications:

  • IoT projects with limited space
  • Wearable devices with visual feedback
  • BLE beacons, wireless sensors
  • Smart home automation

Package Contents:

  • 1x ESP32-S3 Super Mini development board
  • 2x 9-pin male headers (2.54mm pitch)
Product Details
AJSBIU_ESP32-S3_super_mini
27 Items

Specific References

EAN13
6427854038258
