Overview

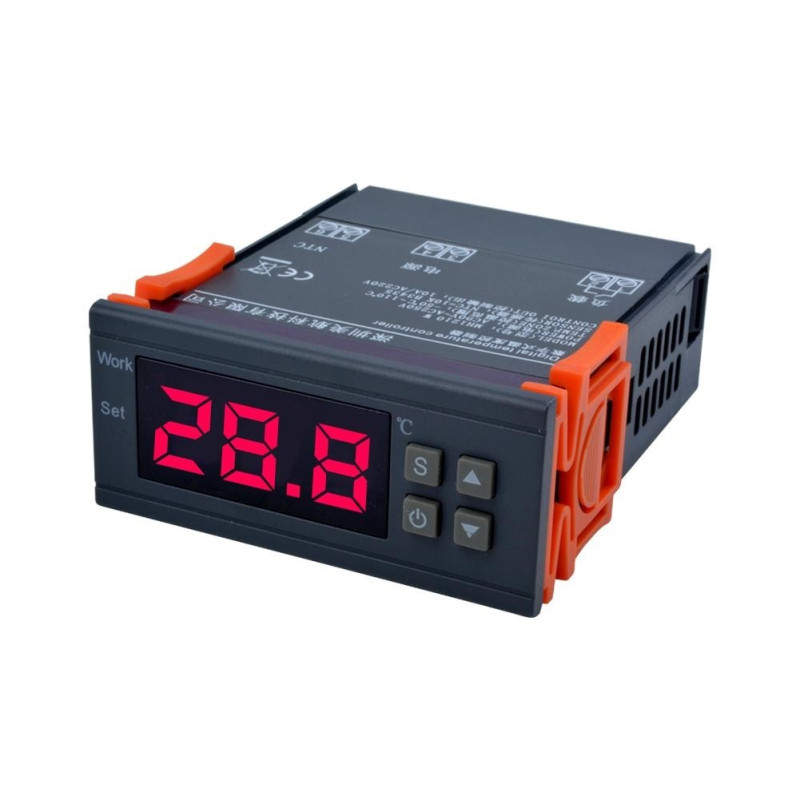

A mini temperature controller.
With large and clear LED display for better readability.
Wide temperature measuring range.
Heating and cooling control.
Temperature calibration function.
Delay protection function.
All parameters can be set to default setting after short circuit.
Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, boiler, steamer, industrial equipments and other temperature-controlled systems.
Specifications
- Temperature control range: 50 ~ 110 degrees c
- Load capacity: 2A / 110-220 V
- Entrance: 1 ntc sensor; sensor wire: 2 mt (standard)
- Measuring accuracy: + 1 degrees c (25 ~ 42 degrees c); + 5 degrees c (other areas)
- Display resolution: 0.1 degrees c
- Controlling accuracy of 0.1 degrees c (means users can stop temp. of 0.1 degrees)
- Consumption: ≤3w
- Net weight: 0.18 kg
