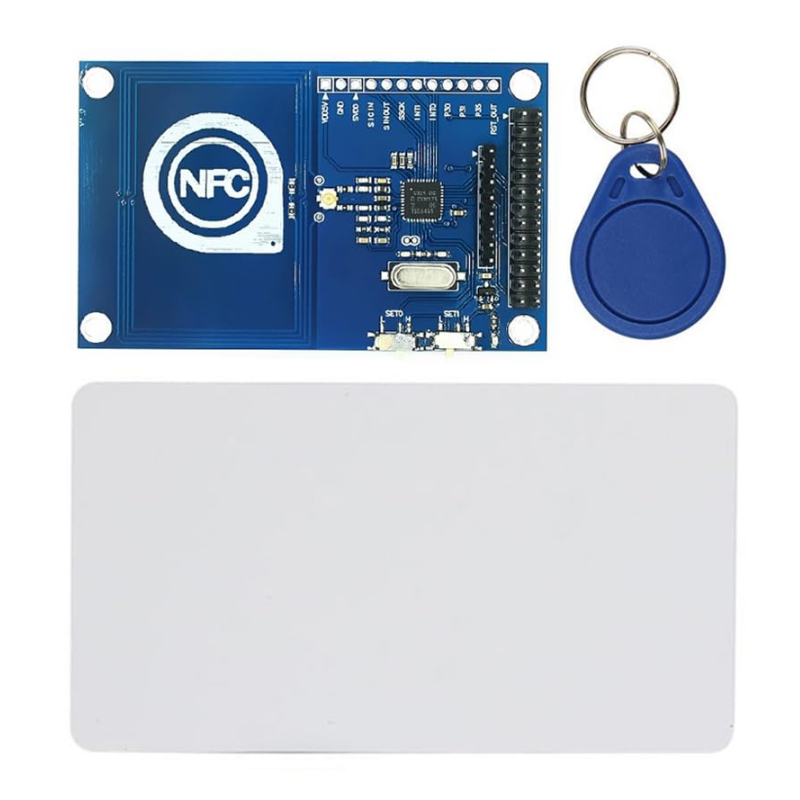

Kit NFC cititor de carduri 13.56MHz compatibil Raspberry Pi

Product Description

The PN532-based NFC module is a 13.56 MHz RFID reader/writer compatible with Raspberry Pi, Arduino, and other development platforms. It supports multiple communication interfaces – SPI, I2C, and UART – making it highly versatile and easy to integrate into access control, identification, authentication, or smart applications.

It works with RFID/NFC tags and cards compliant with ISO14443 Type A and Type B standards, including NTAG213, MIFARE Classic, Ultralight, and others.

The module is fully supported by the open-source libnfc library for Linux, and can also be used with other libraries such as Adafruit_PN532 (Arduino/Python).

Technical Specifications

• Operating frequency: 13.56 MHz
• Supported standards: ISO14443 Type A & Type B
• Interfaces: SPI, I2C, UART
• Reading distance: up to 3 cm
• Operating voltage: 3.3V
• Input voltage range: 3.3V – 5.5V
• Maximum current: 150 mA
• Standby current: 100 mA
• Write mode current: 120 mA
• Read mode current: 120 mA
• Connector: standard 20-pin Raspberry Pi header

Compatibility

• Raspberry Pi (all models)
• Arduino, ESP32, STM32, and others
• 13.56 MHz NFC tags/cards: NTAG213, MIFARE Classic, Ultralight, etc.
• Supported libraries: libnfc, Adafruit_PN532, pi-nfc

Package Content

• 1x PN532 NFC Reader Module – 13.56 MHz (Raspberry Pi compatible)
