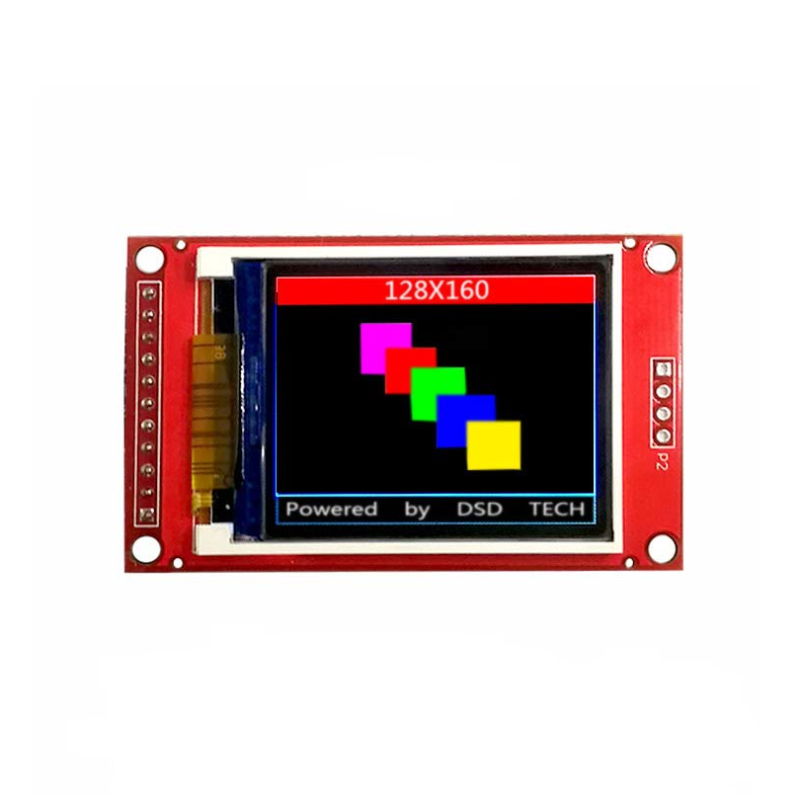

LCD SPI 128x160 Module

Overview

The LCD Module is suitable for your projects when you need a small display. It uses 4 pins for SPI communication and it has its own buffer for pixels addresses. Easy to use with any microprocessor, even with those low memory.

The 1.8" display has a 128x160 resolution. In contrast to other related LCDs whose color quality is bad, this one is a really TFT. ST7735 Driver can display colors on 18 bits (262,144 shades).

Specifications

1.8" diagonal LCD TFT;
128 x 160 resolution, 18 bits colors (262,144);
ST7735R control driver;
4 wires for SPI communication;
3.3 V or 5 V compatible;
3.3 V @ 150 mA regulator;
4 mm x 2 mm mounting holes;
Size: 34 mm x 56 mm x 6.5 mm;
Current: ~50 mA.

Wiring diagram

The module can be powered with 5V or 3.3V, being compatible with most of development boards. SPI communication protocol, and wiring diagram is the following:
