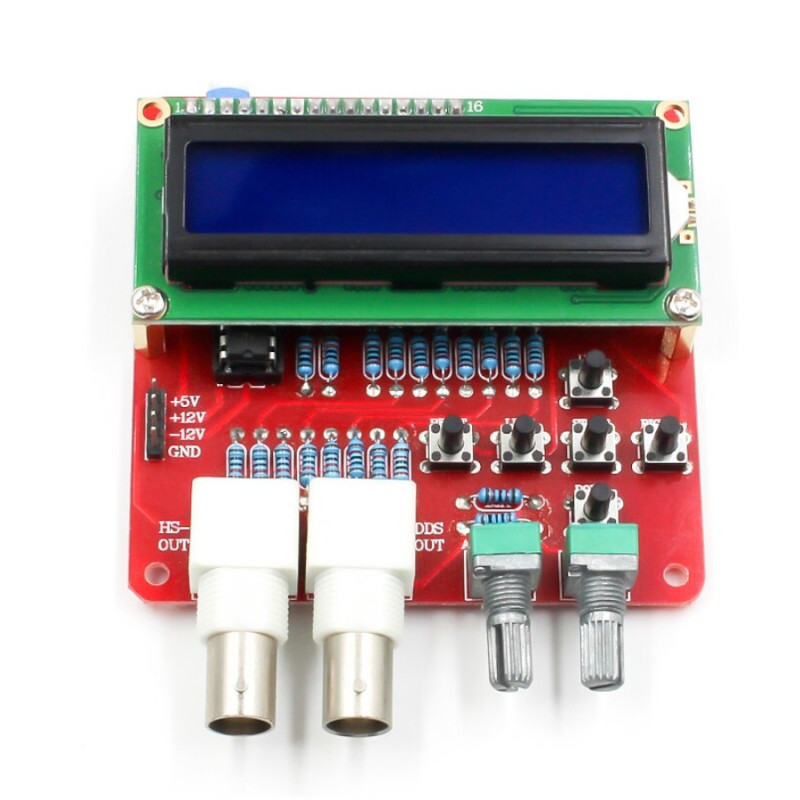

DDS Function Signal Generator
We deliver to lockers!
Pick up your orders anytime, hassle-free!
Fast Delivery!
Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!
2-Year Warranty
Reliable products, worry-free!
Easy 14-Day Returns
Unused items? No questions asked!
Description
Description:
Provided lots of electronic components for you to do it by yourself.
Simple circuit with easily accessible and cheap components.
Delicated high speed (HS) signal output up to 8MHz.
DDS signal with variable amplitude and offset.
DDS signals: sine, square, saw, rev saw ,triangle, ECG and noise.
2 * 16 LCD menu, intuitive 5 button keypad.
Frequency adjusting steps: 1, 10, 1000, 10000MHz.
Restoring last configuration after power up.
Has two outputs-one for DDS signal and another for high speed aquare signal.
Material: PCB + Electronic Components
Power Supply: +5V / +12V / -12V
Menu Displey: 2 * 16 LCD
HS Signal Frequency: 1, 2, 4, 8MHz
Red Board Size: 8 * 8cm / 3.15 * 3.15in (L * W)
Red Board Weight: 20g / 0.7oz
Screen Size: 6.5 * 1.5cm / 2.6 * 0.6in (L * W)
Screen Board Weight: 29g / 1.04oz
Package Size: 15 * 11 * 2cm / 5.9 * 4.3 * 0.8in (L * W * H)
Package Weight: 101g / 3.58oz
Product Details
MYYNRD_DDS_GENERATOR
2 Items
Specific References
- EAN13
- 6427854018281
