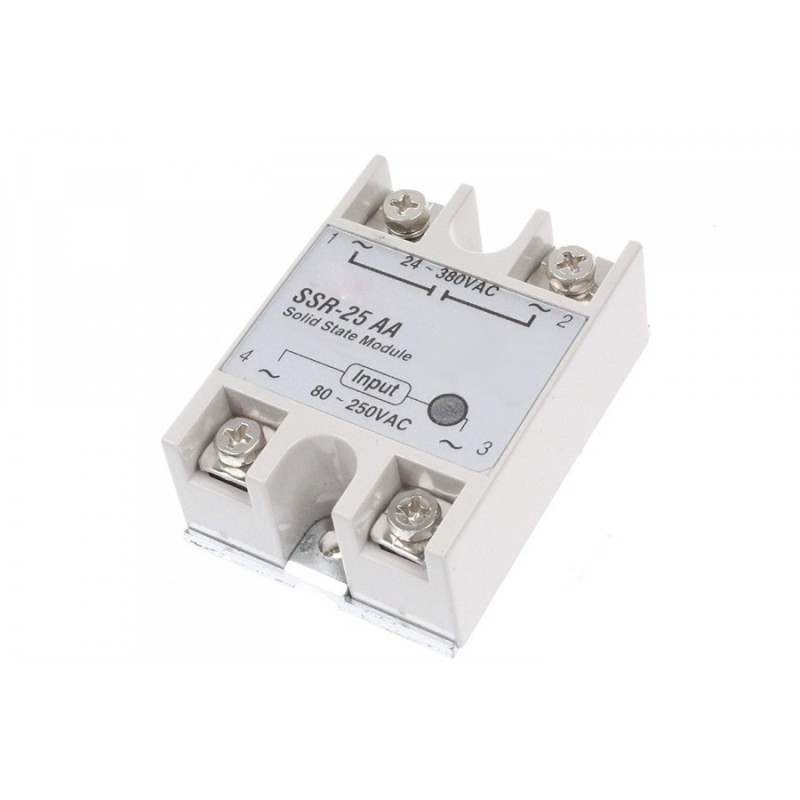

Solid State Relay 25A-90A AA
  • Solid State Relay 25A-90A AA

Solid State Relay 25A-90A AA

NEXRYK_SSR-25AA
Max current
lei42.02
lei31.51 Save 25%
Tax included
Quantity
Product available with different options
0 Items

  We deliver to lockers!

Pick up your orders anytime, hassle-free!

  Fast Delivery!

Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!

  2-Year Warranty

Reliable products, worry-free!

  Easy 14-Day Returns

Unused items? No questions asked!

Description

Overview

This solid state relay is used in applications for: electric power, chemical, plastic injection, packaging, incubators, ovens, and other industrial equipment automatic switch.

Specifications

Product Name Solid State Relay
Type SSR-25AA
Material Metal, Plastic, Electric Parts
Control Method Zero Cross Trigger
Operating Voltage(input) 80~250VAC 50/60Hz
Min. ON/OFF Voltage ON＞45V , OFF＜35V
Rated Current 25 A
Trigger Current 5.0mA / 110VAC max.
Operating voltage(output) 24-380VAC
Voltage Drop 1.6V / 25°C
Leakage Current 3 mA
Response Time ON＜20ms , OFF＜20ms
Max. Back Voltage 600 VAC
Max. Durated Current 275A
Mounting Hole Size Small Dia: 4mm, Big: 7 x 4.3mm
Relay Size 64 x 45 x 23 mm
Main Color Silver Tone, Gray
Weight ~110g
Operating Temperature -20°C ~ +80°C
Dielectric Strength Over 2.5KVAC / 1min
Isolation Strength Over 50MΩ / 500VDC

Guiding of Model

1. Product
  SSR：Single Phase S.S.R
TSR：Three Phase S.S.R

2. Output Current
  10=10A 25=25A
40=40A 50=50A
75=75A

3. input Operating Voltage
  L：4 ~20 mA
D：4 ~32 VDC
A：80 ~ 250 VAC
V：Variable Resister

4. Output Operating Voltage
  A：AC Voltage
D：DC Voltage

5. Output Voltage Range
  H：90 ~ 480 VAC (High Voltage)
non ：Standard Type
Product Details
NEXRYK_SSR-25AA
