40 Pin Header for Raspberry Pi Zero
  • 40 Pin Header for Raspberry Pi Zero

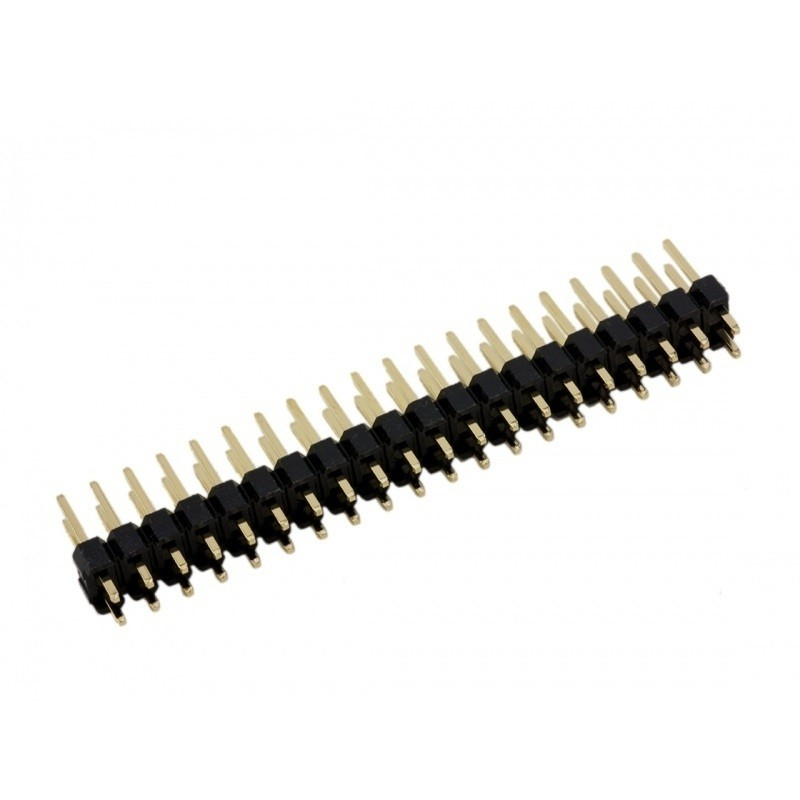

40 Pin Header for Raspberry Pi Zero

ZBBWNB_rpi_pin_header
Raspberry Pi
lei0.98
Tax included
Quantity
100 Items

  We deliver to lockers!

Pick up your orders anytime, hassle-free!

  Fast Delivery!

Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!

  2-Year Warranty

Reliable products, worry-free!

  Easy 14-Day Returns

Unused items? No questions asked!

Description

Overview

This is a 40 Pin (2 x 20 row) header with 2.54mm pitch! You can solder this onto a Raspberry Pi Zero. They're super special gold plated ones for excellent conductivity and they wont oxidize!

Breakaway headers are the duct tape of electronics. They're great for connecting things together, soldering to perf-boards and fit into any breakout or breadboard!

These 40-pin long headers, 0.1" pitch, can be stacked next to each other on a 0.1" grid and broken apart easily with pliers or diagonal cutters.

We have a few different varieties and sizes of headers for differing projects.

Specifications

  • Number of pins - 2 x 20
  • Male/Male (standard)
  • Contact material - Gold plated
  • Contact resistance - Max 20 mΩ
  • Nominal current - 3 A
  • Spacing - 2.54mm (0.1")
  • Overall Pin Height Top Pin to Bottom Pin: 11.64mm
  • Black Shroud Height: 2.50mm
  • Bottom Pin Height (from shroud to top of pin): 3.01mm
  • Top Pin Height (from shroud to top of pin): 6.13mm
  • Overall Length: 50.60mm
  • Overall Width - 5.0mm

Product Details
ZBBWNB_rpi_pin_header
100 Items

Specific References

EAN13
6427854033208
