Relay SRD-12VDC-SL-C

Product Description

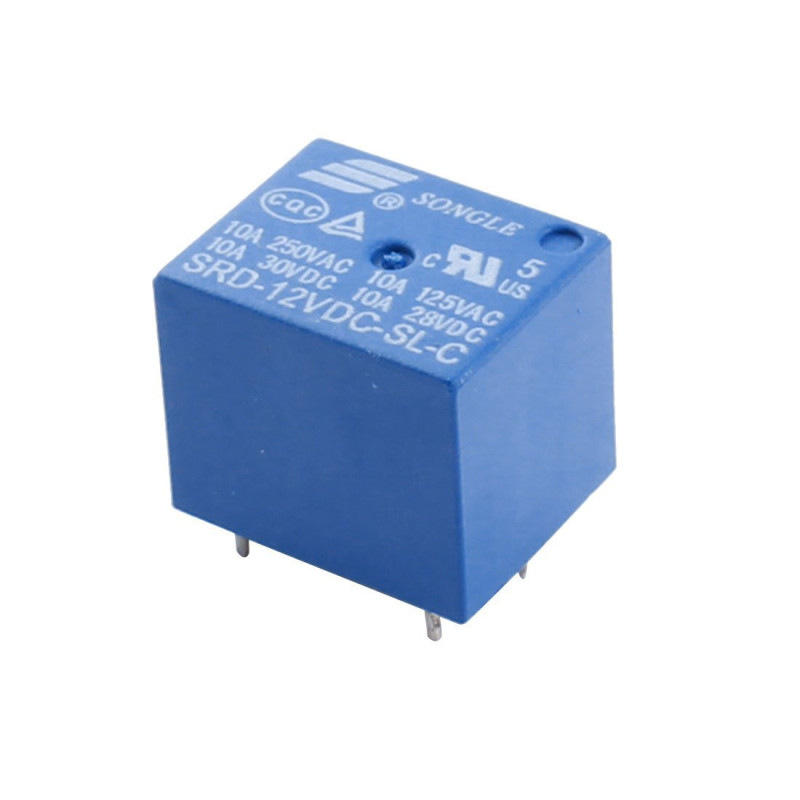

SRD-12VDC-SL-C is a compact electromechanical relay, ideal for DIY projects and light industrial applications. With a 12 V DC coil and SPDT contacts (1 Form C), it safely switches loads up to 10 A on both AC and DC. The standard blue housing and well-known pinout make it easy to integrate on development boards, relay modules, or in breadboard/PCB assemblies. It’s the classic choice when you want to electrically isolate logic (the microcontroller) from a larger load—motors, solenoid valves, LED strips, power supplies, etc.

Safety note: switching mains voltages must only be performed by qualified personnel. Observe PCB creepage/clearance distances and use appropriate terminals/insulation.

Technical Details

• Contact type: SPDT (Common, NO, NC – 1 Form C)
• Coil voltage: 12 V DC
• Coil resistance (typ.): ~400 Ω
• Coil current (typ.): ~30 mA at 12 V
• Switching capacity: up to 10 A @ 250 VAC or 10 A @ 30 VDC (max.)
• Maximum contact voltage: 250 VAC / 30 VDC
• Operate/release time (typ.): 10 ms / 5 ms
• Mechanical life: >10⁷ cycles (typ.)
• Number of pins: 5 (COM, NO, NC + 2 coil pins)
• Approx. dimensions: 19.0 × 15.5 × 15.0 mm
• Operating temperature: −40…+85 °C (typ.)
• Mounting: through-hole (THT)

(Values are typical for the SRD family; minor variations may exist depending on batch/manufacturer.)

Practical tips:

• For 3.3 V microcontrollers, use a transistor with sufficient gain or a logic-level MOSFET.
• For EMI protection, add an RC snubber on the contacts for AC inductive loads and a TVS on DC loads.
• If you prefer additional isolation, use an optocoupler between the MCU and the transistor.

Package Contents

• 1× SRD-12VDC-SL-C relay, SPDT, 12 V, 10 A
